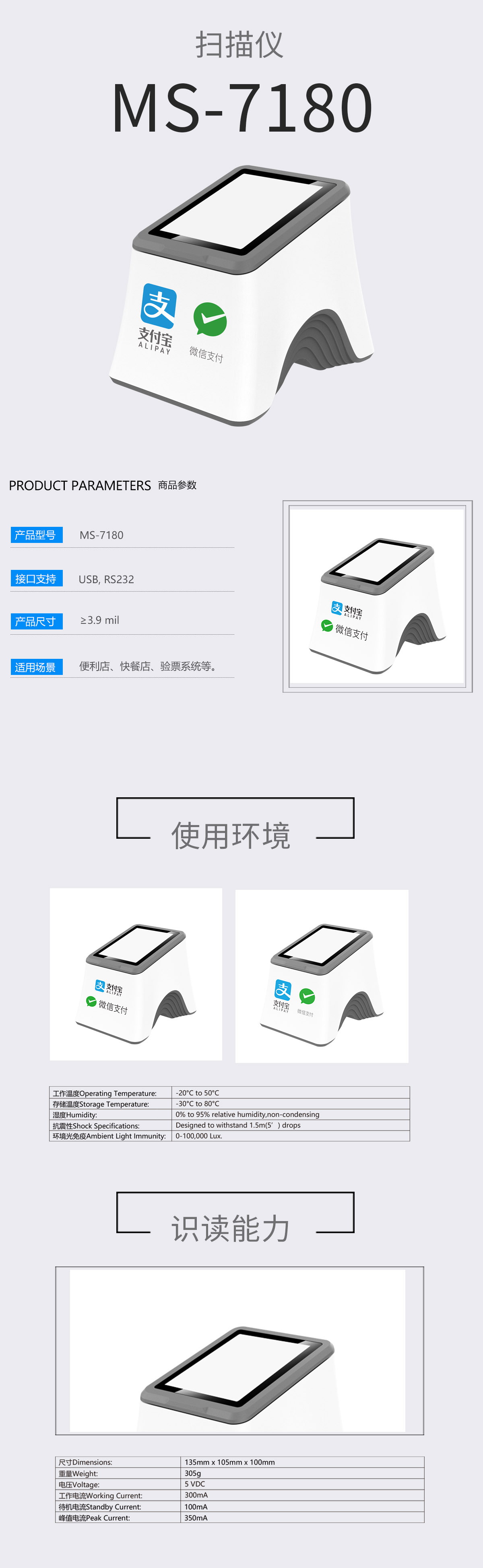

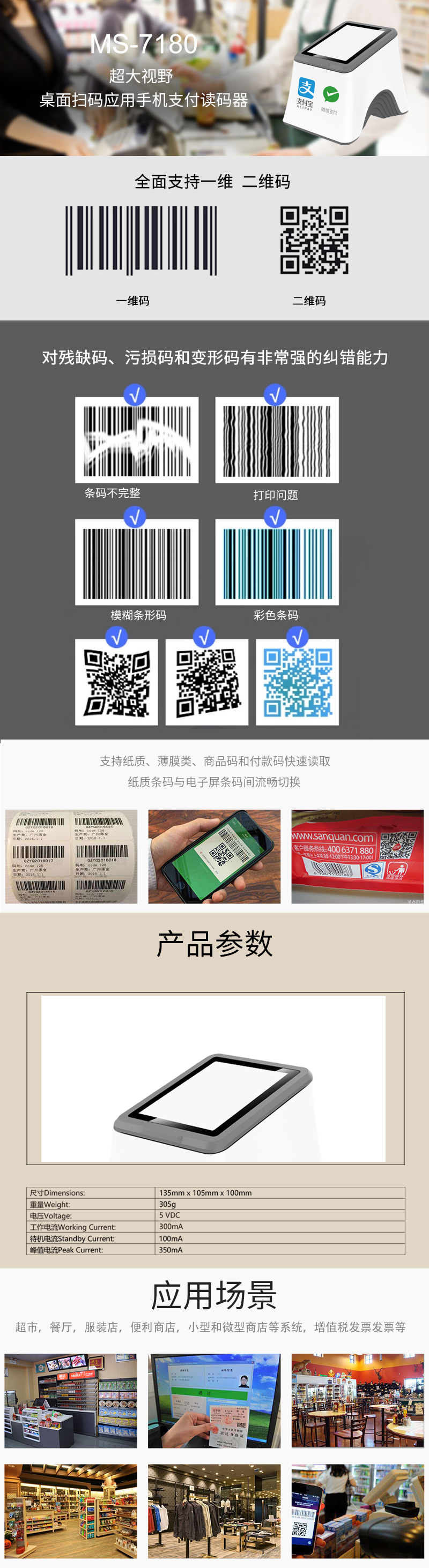

美松二維碼掃描模塊 1.大窗口模式,支持貼屏掃碼,無需對準 2.支持微信,支付寶,美團等掃碼支付 3.掃碼成功語音播報,解放收銀員,更避免漏單 4.接口豐富,內置RS232 和USB接口 5.經典外觀設計
美松二維碼掃描模塊MS-7180掃描二維碼收款,條碼掃描收款,大窗口模式,支持貼屏掃碼,無需對準；支持微信,支付寶,美團等掃碼支付；掃碼成功語音播報 ,解放收銀員,更避免漏單；接口豐富,內置RS232 和USB接口；經典外觀設計,視場40.5°(H)x31°(V),運動容差>2m/s,接口支持USB, RS232,掃碼槍二維碼支付盒子,掃描平臺,超市收銀,醫院藥店電子醫?？?社?？?健康碼掃描器掃碼墩小白盒,手機支付/電子醫?？?健康碼.
關聯產品 :MS-7710 MS-20E MS-20 MS-28 MS-2102 MS-2104 MS-6100 MS-7200 MS-6400 MS-4200N MS-3200V
相關推薦 :微型打印機 針式打印機 熱轉印打印機 智能一體機 票據打印機 嵌入式熱敏打印模塊 無版燙金機 微型打印機 關于美松
物理特性/Physical Characteristics |
||
尺寸 Dimensions: |
135mm x 105mm x100mm |
|
重量 Weight: |
305g |
|
電壓 Voltage: |
5V DC |
|
工作電流 Working Current： |
300mA |
|
待機電流 Standby Current： |
100mA |
|
峰值電流 Peak Current： |
350mA |
|
性能指標/Performance Characteristics |
||
傳感器像素 Image (Pixels): |
640 pixels (H)x 480 pixels (V) |
|
光源 Light Source: |
Illumination：6500K LED |
|
視場角 Field of View: |
40.5°(Horizontal)，31°(Vertical) |
|
旋轉傾斜偏轉 Roll / Pitch / Yaw: |
360°, ±65° , ±60° |
|
打印對比度Print Contrast: |
20% minimum reflective difference |
|
接口支持 Interfaces Supported: |
USB、RS232(選配) |
|
運動容差Motion Tolerances: |
>2m/s |
|
解碼能力/Symbology Decode Capability |
||
一維條碼/1-D: |
UPC, EAN,Code 128,Code 39, Code 93, Code 11, Matrix 2 of 5, Codabarlnterleaved 2 of 5, Mis Plessey, GSl DataBar, China Postal, Korean Postal,etc |
|
二維條碼/2-D: |
PDF417,MicroPDF417, Data Matrix,Maxicode,QR Code,MicroQR, AztecHanxin, etc. |
|
條碼精度Minimum Resolution: |
≥3.9 mil |
|
用戶環境參數/User Environment |
||
工作溫度 Operating Temperature: |
-20°C to 50°C |
|
存儲溫度 Storage Temperature: |
-30°C to 80°C |
|
濕度 Humidity: |
0% to 95% relative humidity,non-condensing |
|
抗震性 Shock Specifications: |
Designed to withstand 1.2m(5’) drops |
|
環境光免疫 Ambient Light Immunity: |
0-100,000 Lux. |
|
解碼范圍/Decode Ranges |
||
PDF417(6.88mil) |
0mm-50mm |
|
UPCA(13mil) |
5mm-110mm |
|
QR(20mil)： |
0mm-100mm |
|
Performance may be impacted by bar code quality and environmental conditions |
||
|
||
